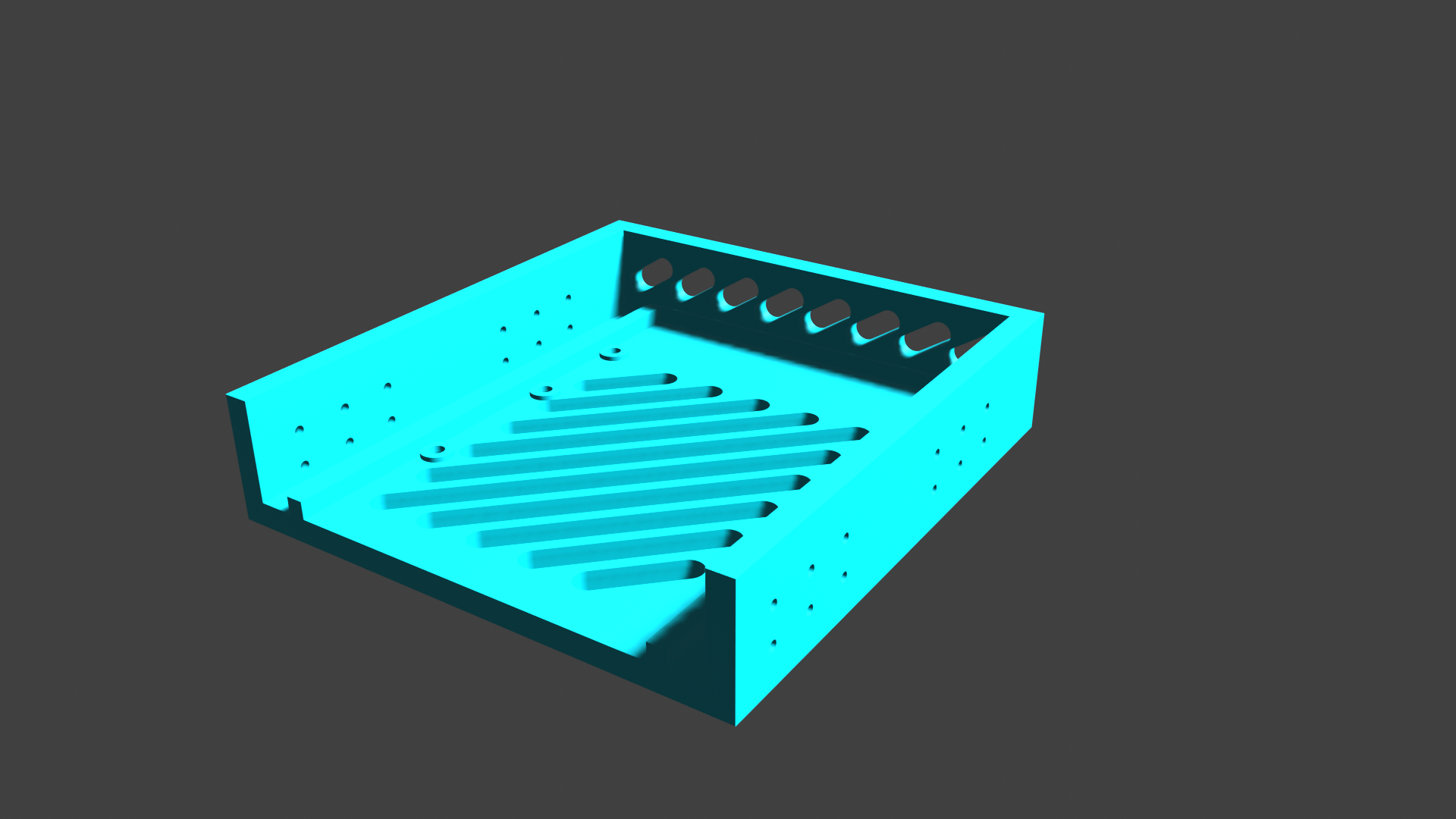

This is the 3D Print STL file for the one piece 3.5" HDD to 5.25" CDROM, DVD, ATX standard size case adapter
Features: Allows mounting of 3.5" hard drives using the 5.25" CDROM, DVD Blueray standard size mount slot. Fits both 3.5" standard hard drive bottom mounting hole configurations. Fits standard DVD/CDROM ATX standard Desktop/Tower 5.25" mounting slot. Comes with all mounting screws. Suggested material: PETG plastic
Suggested Hardware: 4 x 6-32 3/8" machine screws - to mount hard drive 8 x M3 6mm self tapping screws - to mount adapter to ATX case
Dimensions: 156mm long x 146mm wide x 35mm height Fits standard 3.5" hard drive mount slot, and holes from the bottom Fits standard 5.25" ATX CDROM mount slot, and holes from the side
