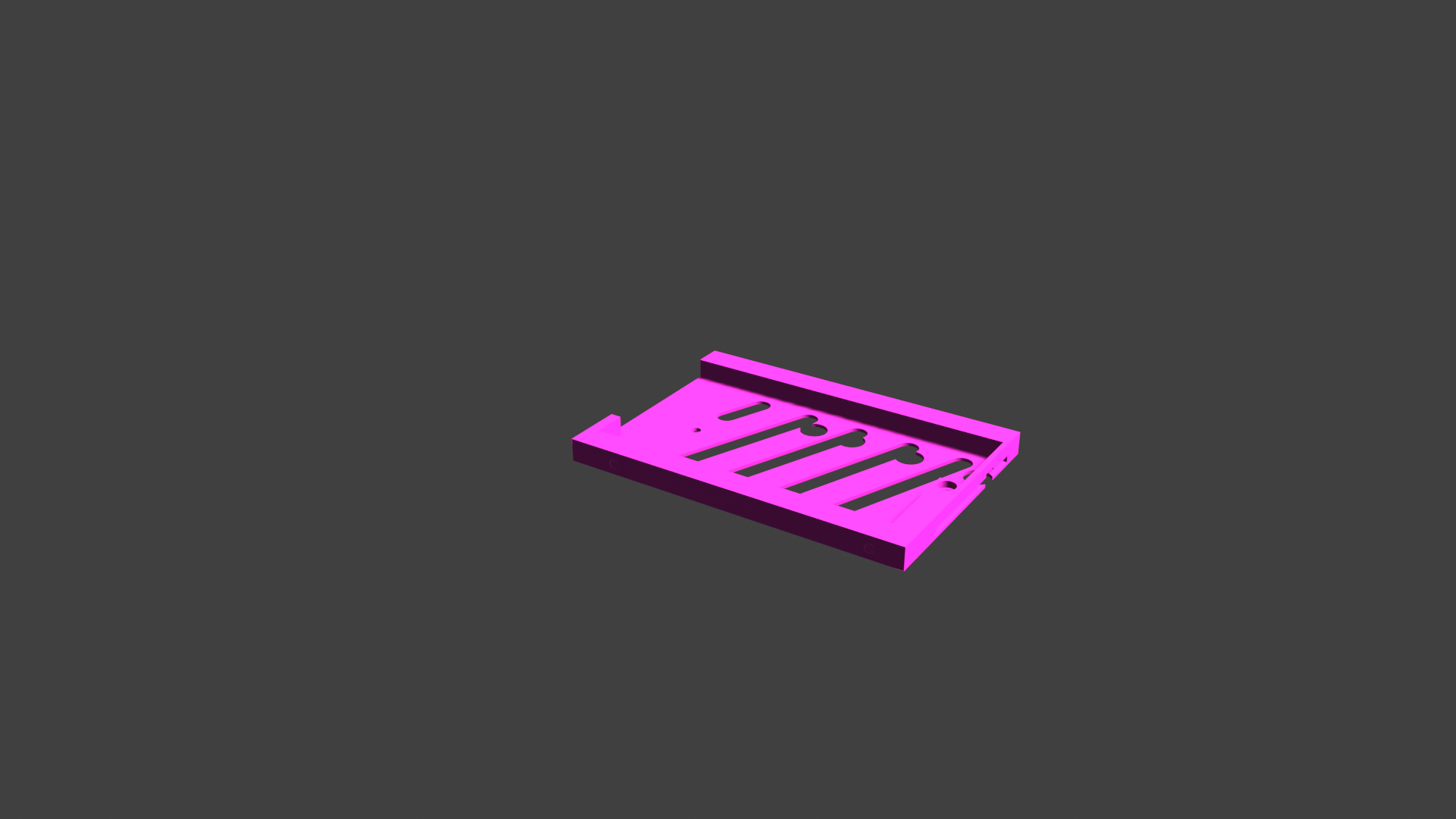

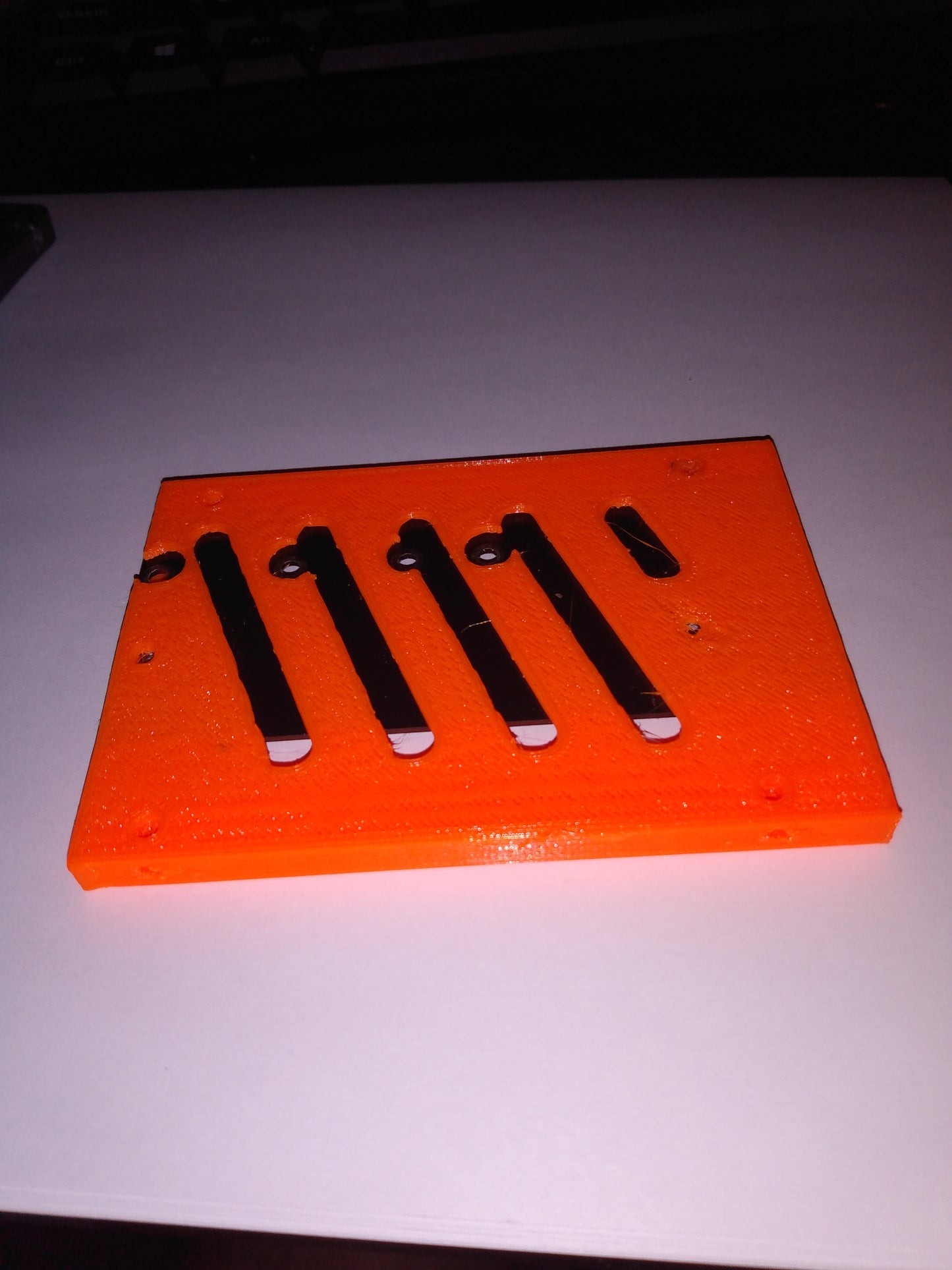

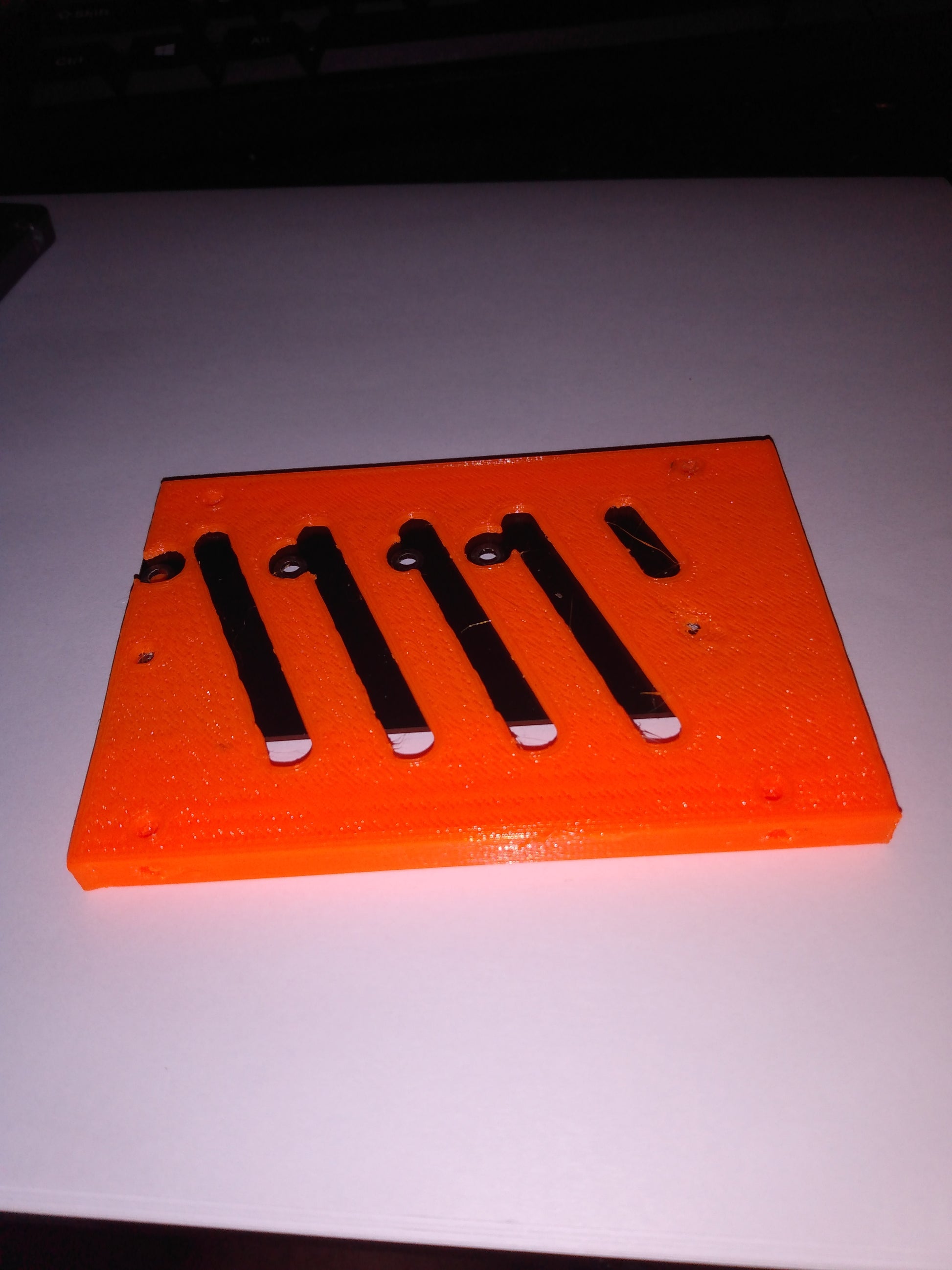

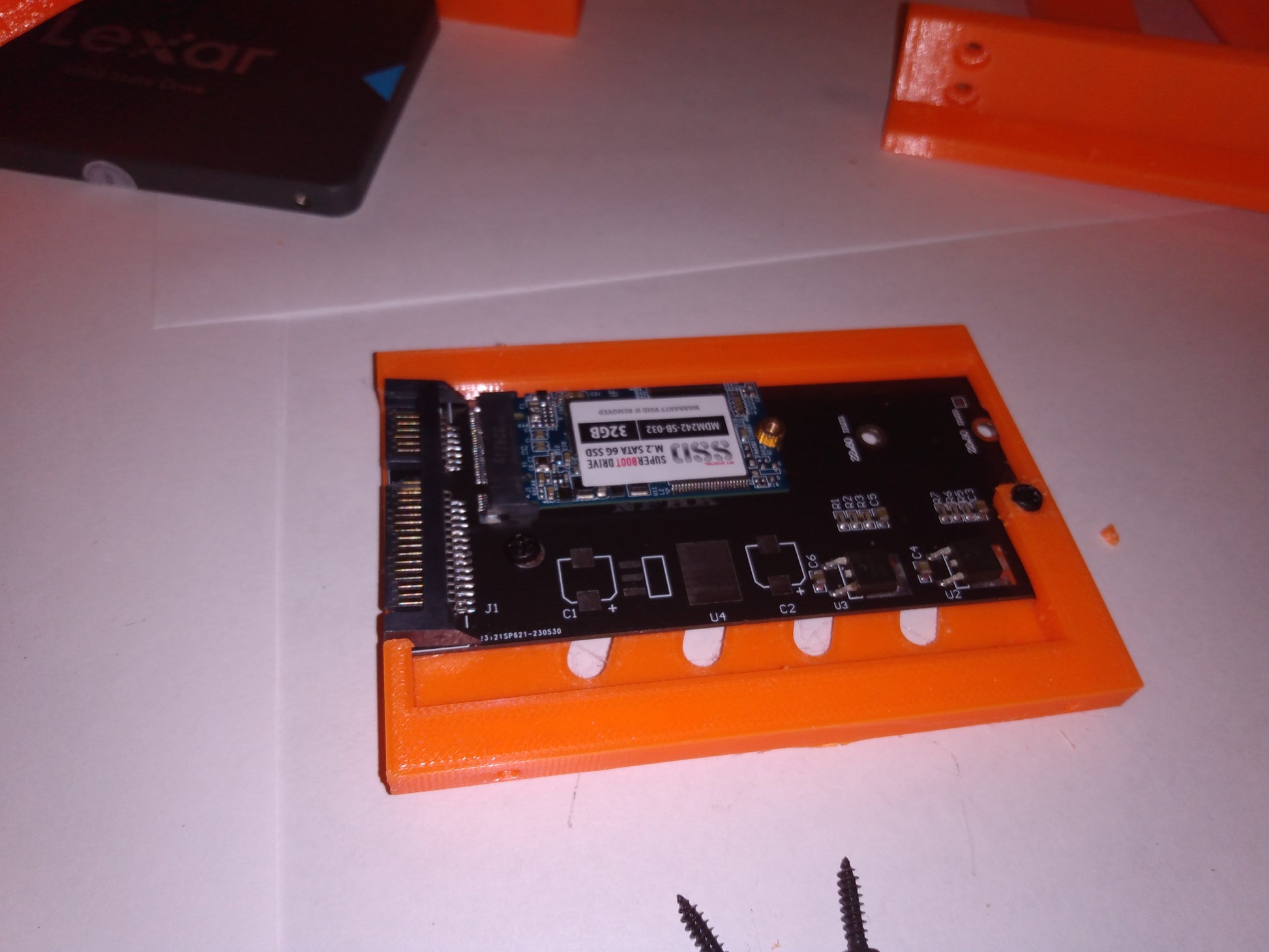

This is a STL 3D Printable file for the M2. SATA to 2.5" Hard Drive Caddy Adapter

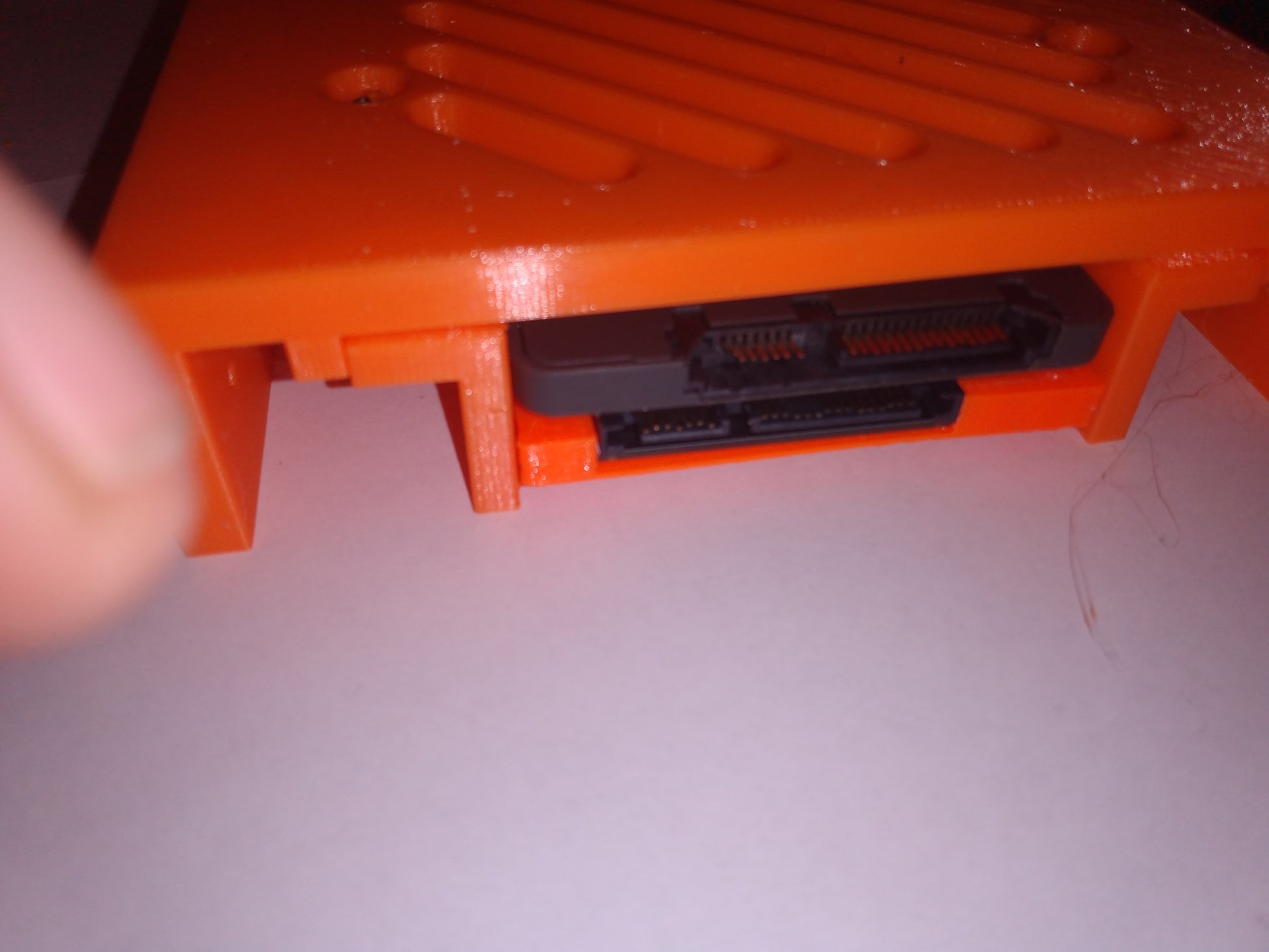

Fits a B+M Key SATA M.2 NGFF SSD to SATA 3 Raiser M.2 to SATA Adapter Expansion Card.

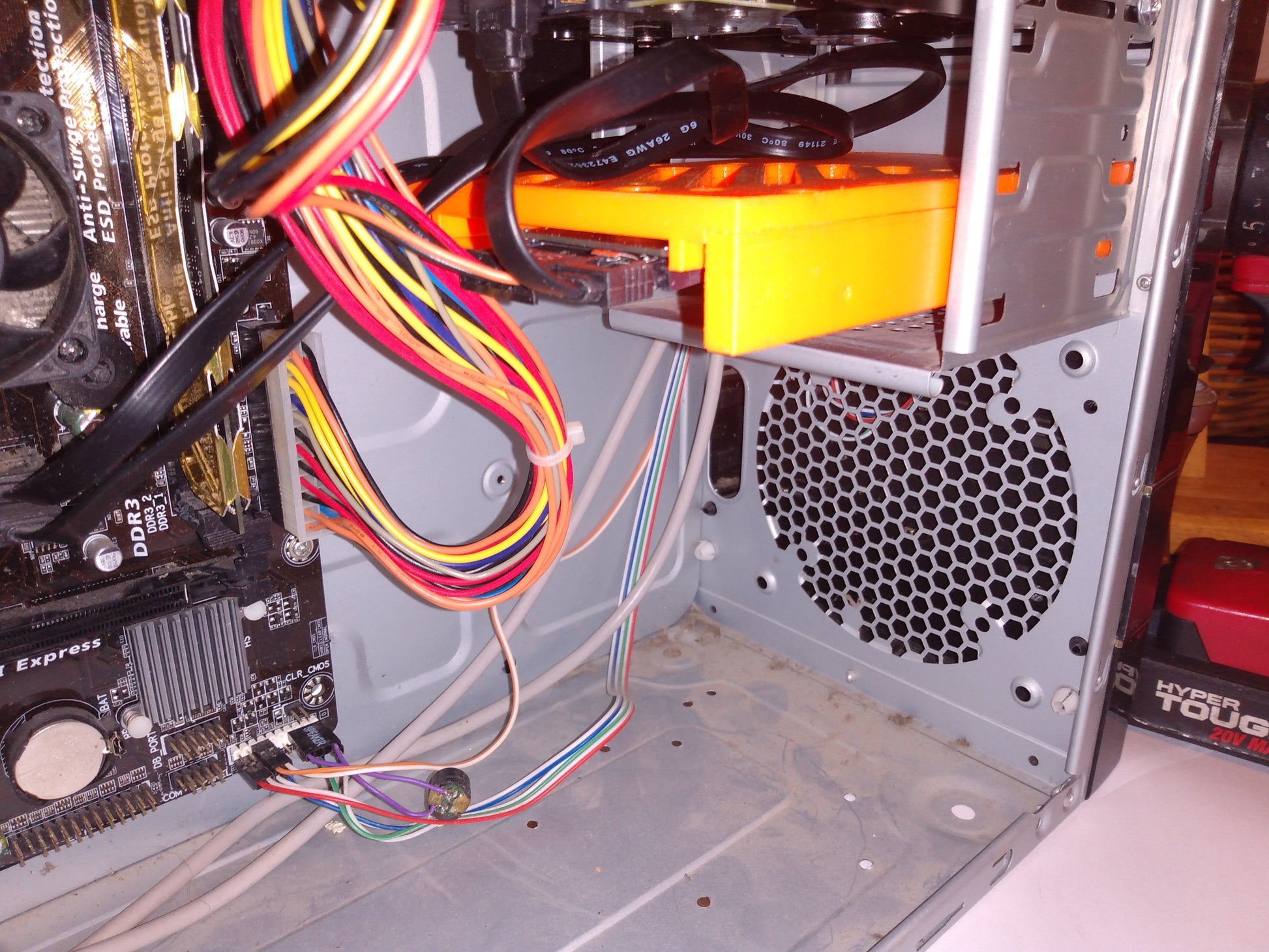

Provides a way to mount M.2 SSD SATA III chips in a 2.5" hard drive slot. So SSD does not have to float around inside the case.

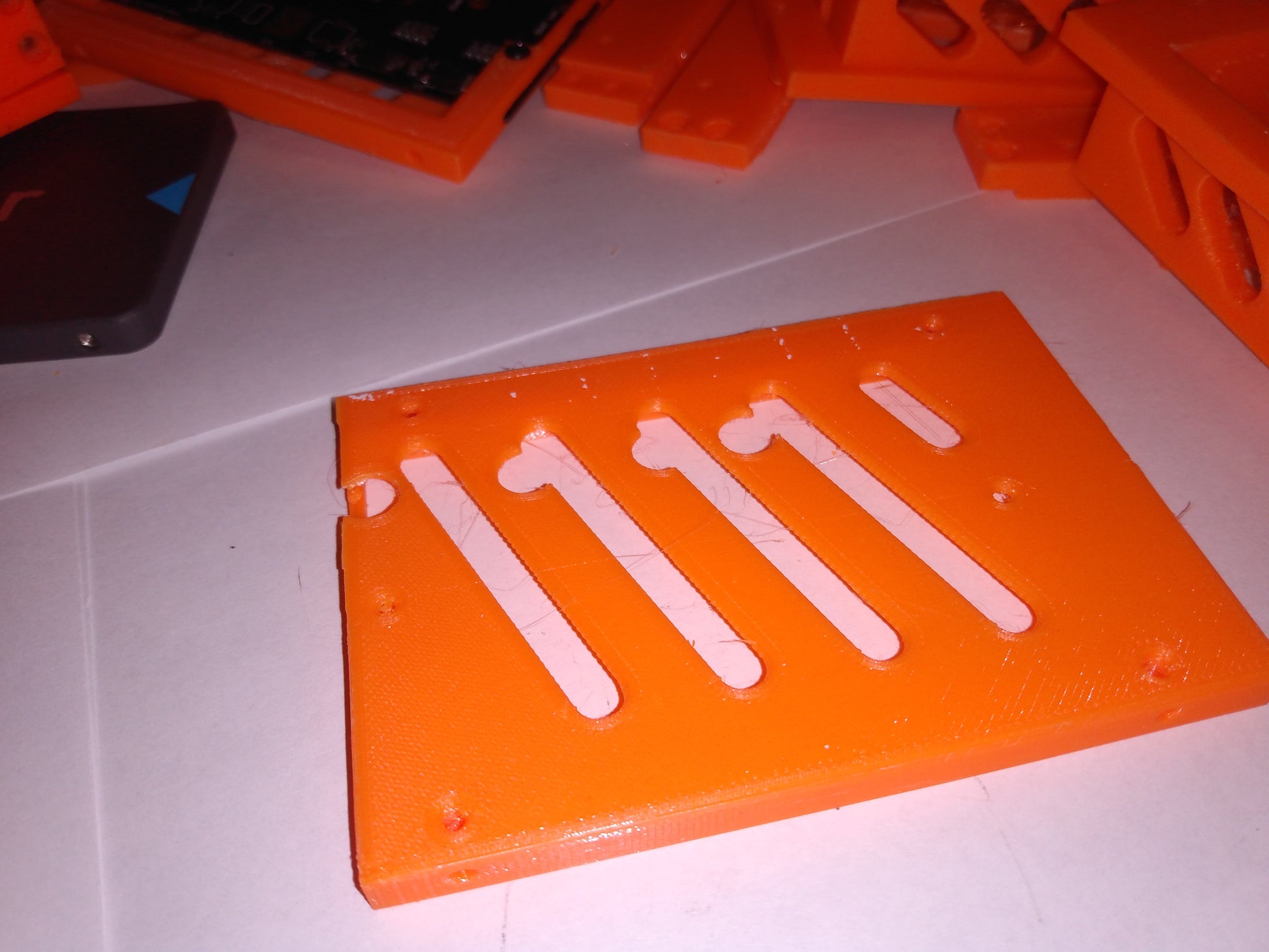

Simple Installation. conforms to 2.5" standard laptop storage size. Has cooling vents built in.
Dimensions: 100mm x 69.85mm x 7.0mm, fits SSD M.2 2230, 2242, 2260 & 2280.
Note: Does not fit SSD M.2 22110 - 110mm. Does not fit NVMe (NVMe is PCI Express only). Effortless Storage Expansion - for modern desktops and laptop computers.
Suggested Material: PETG plastic.

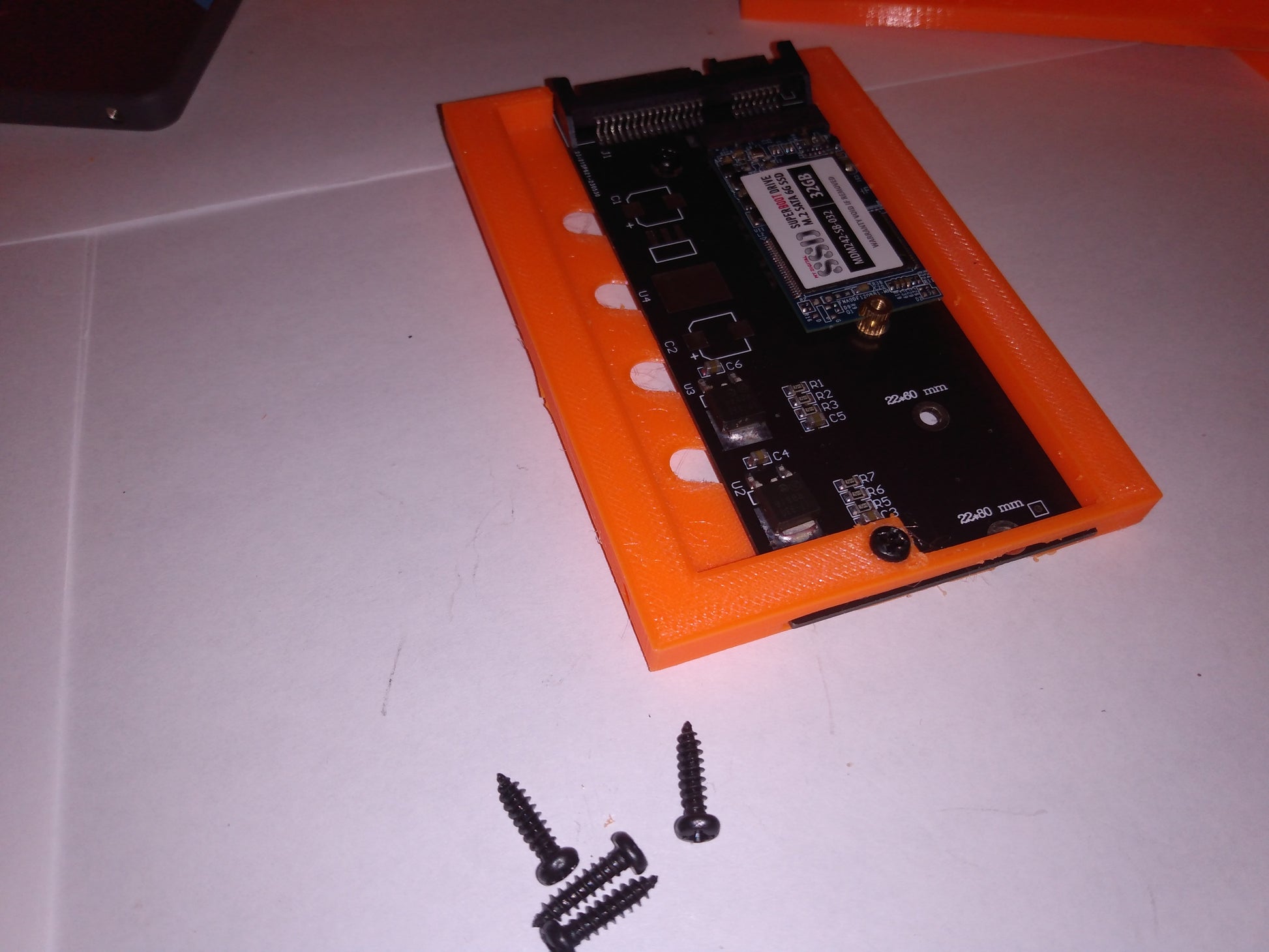

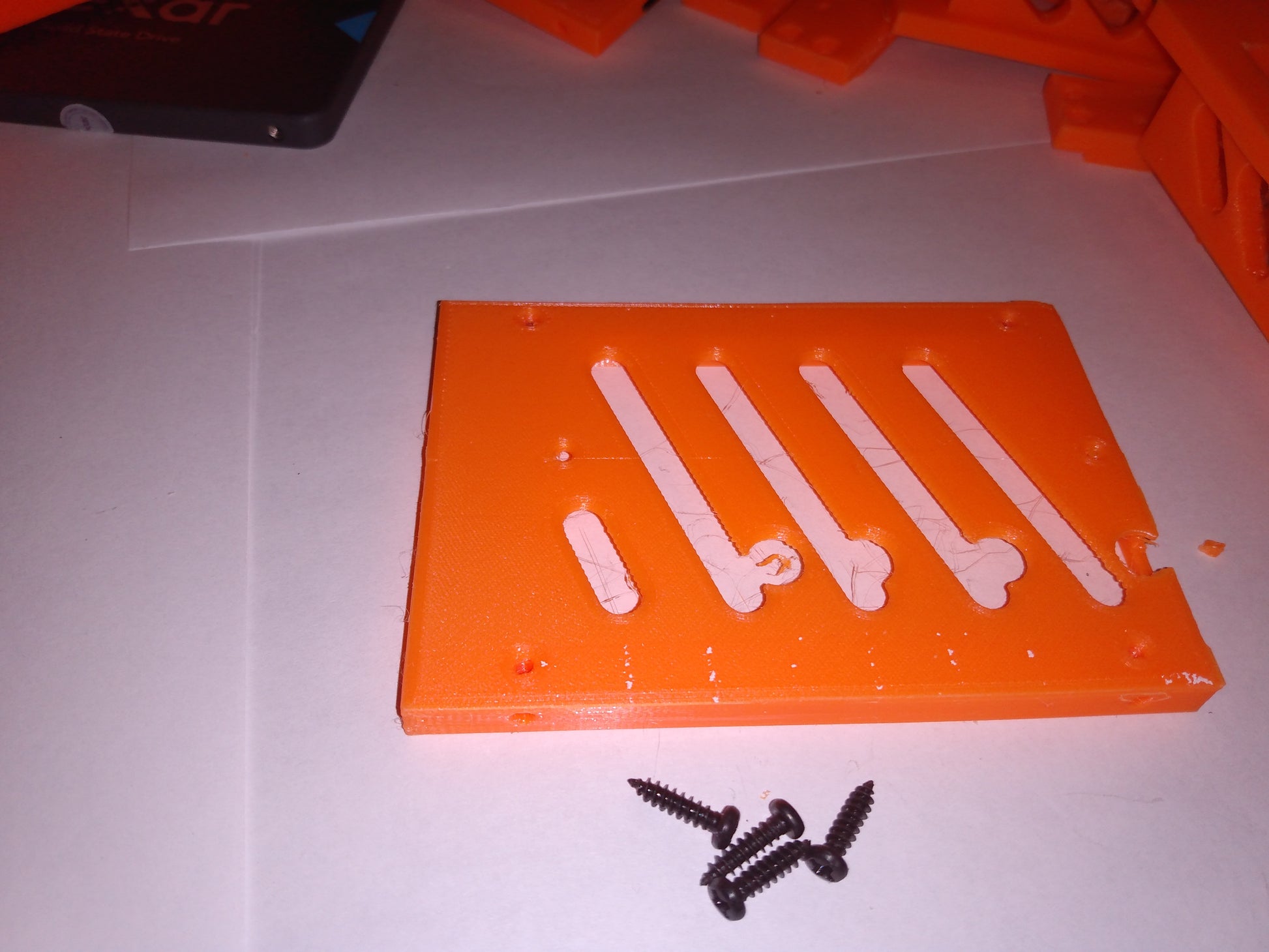

Suggested Hardware: 4 x M3 6mm self tapping screws 2 x M3 4mm self tapping screws
Note: NVMe M.2 SSDs cannot be adapted to use SATA III cables. The "e" in the NVMe protocol stands for PCI Express, and it can only be used directly as a PCI Express device. The NVMe must be mounted directly on the motherboard, or it can be adapted to be used with the USB 3.1 protocol only.
