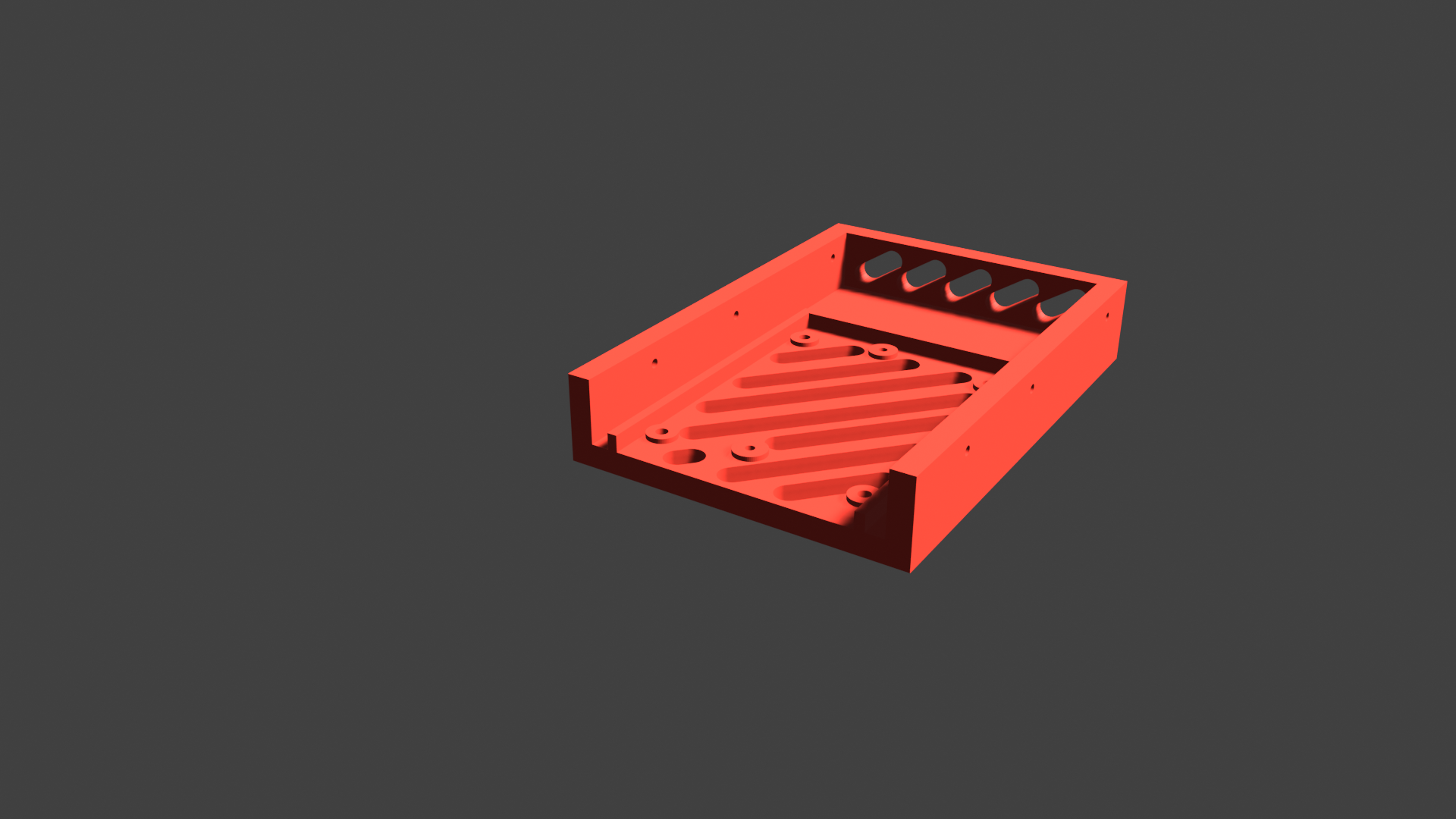

This is the Digital STL file for printing the Hard Drive Adapter.

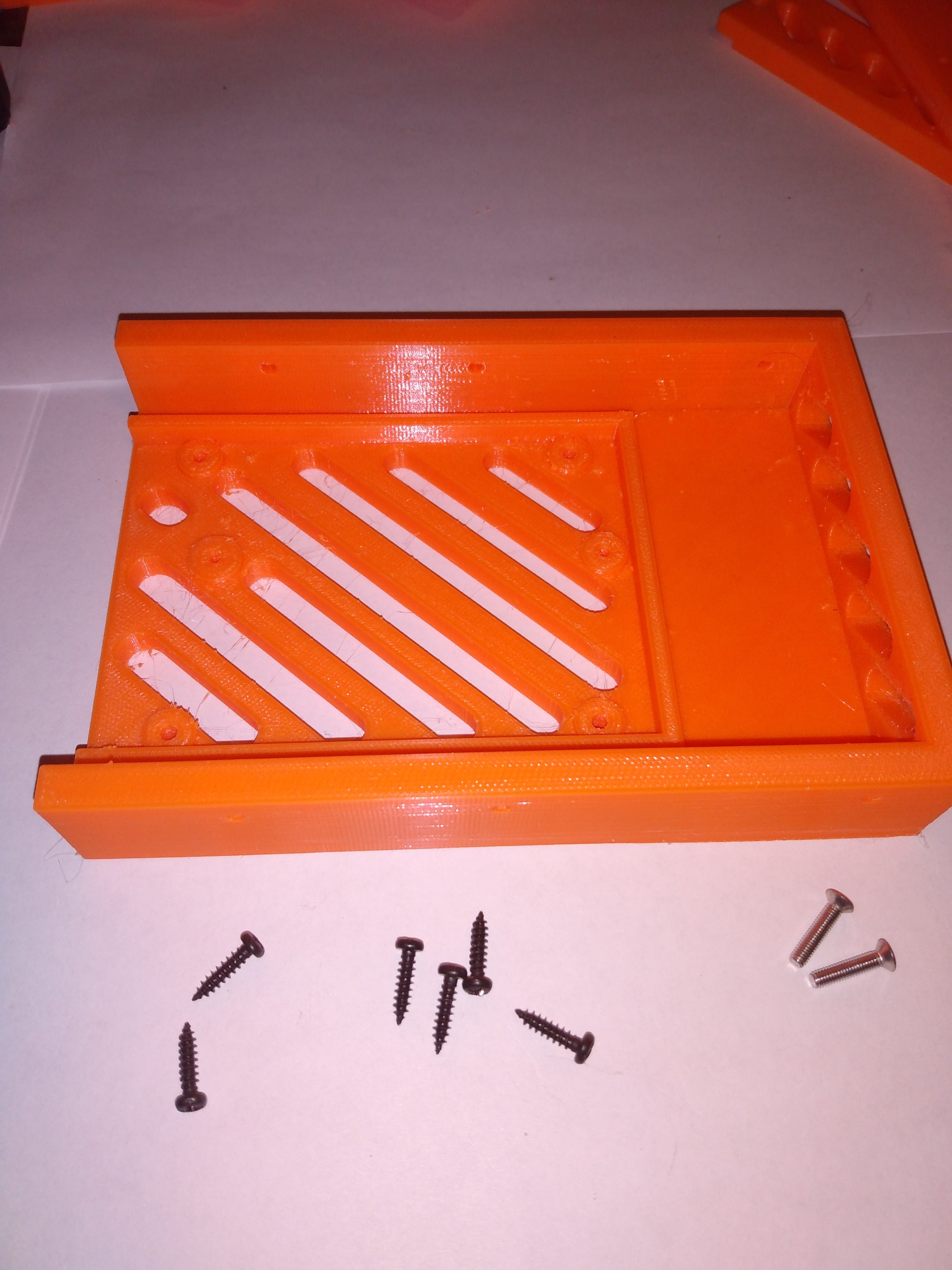

This is a one peice 3.5" Hard Drive Caddy Adapter for 2.5” hard drives, or B+M Key SATA M.2 NGFF SSD to SATA 3 Raiser M.2 to SATA Adapter Expansion Card.
Fits 2.5" or M.2 SSD SATA III drives, and adapts to the Standard 3.5" Hard Drive Slot in ATX Cases.
Provides a secure bolt on solution to M.2 SSD, or 2.5” Hard Drive, that would otherwise be flopping around in the computer case.

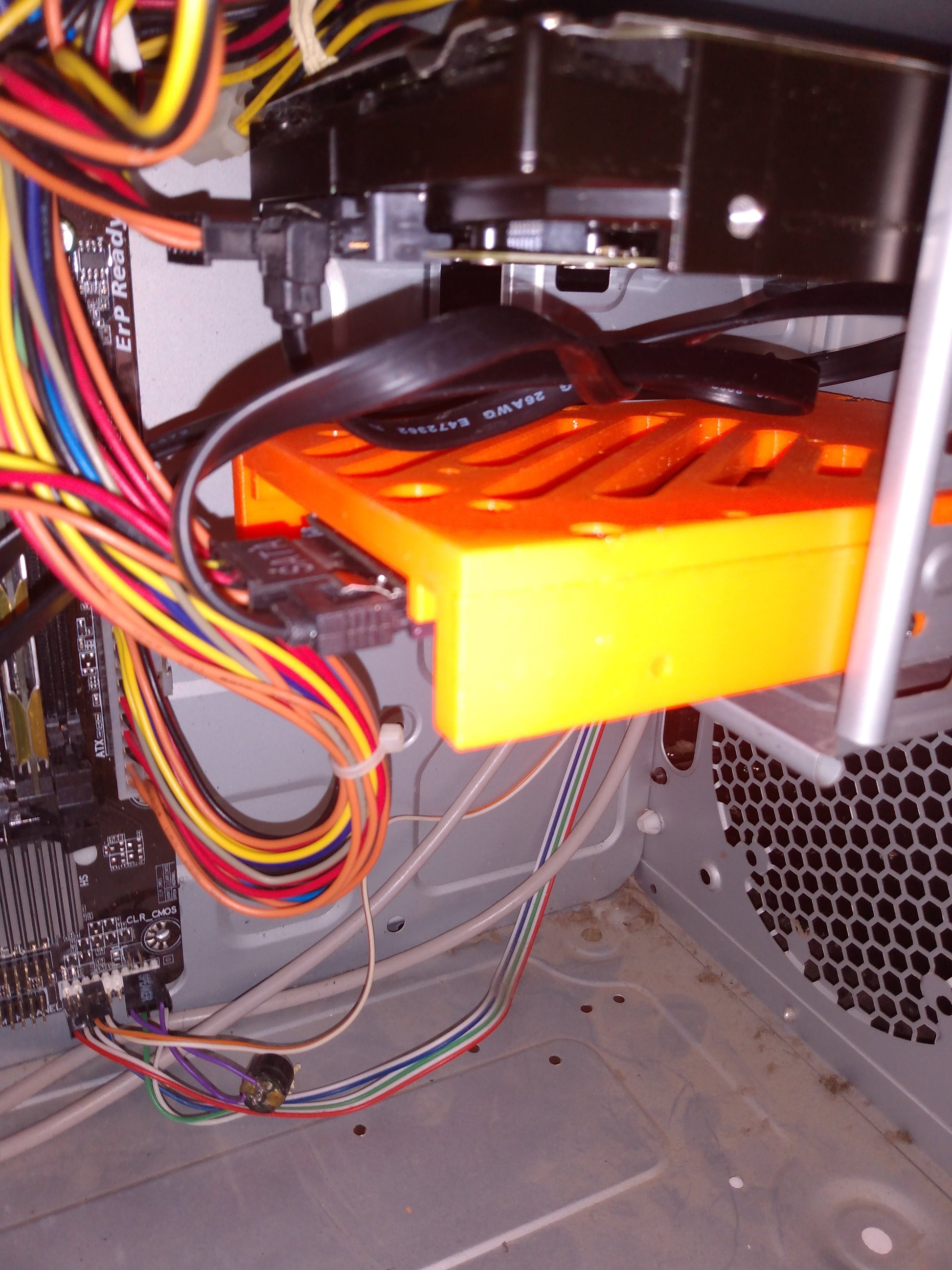

Fits the standard 3.5” ATX hard drive slot.
Dimensions: 146mm x 101mm x 41mm

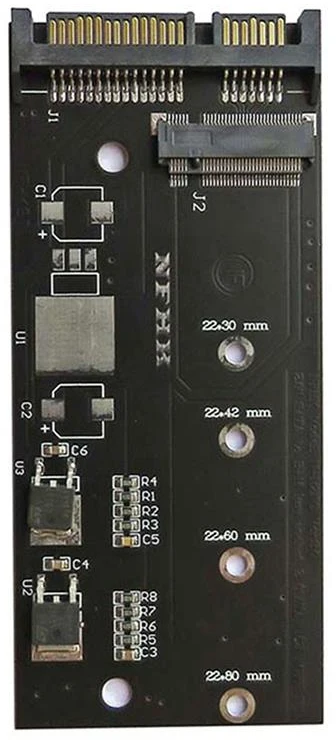

Fits 2.5” hard drive, or SSD M.2 2230, 2242, 2260 2280. Mounts 2.5” or M.2 SSD B+M Key SATA M.2 NGFF Raiser Adapter Expansion Card.
Note: Does not fit SSD M.2 22110 - 110mm. Does not fit NVMe (NVMe is PCI Express only).
Effortless Storage Integration: Simplify hard drive storage, bolt on solutions, to standard 3.5” ATX Slots.
Suggested Material: PETG plastic.

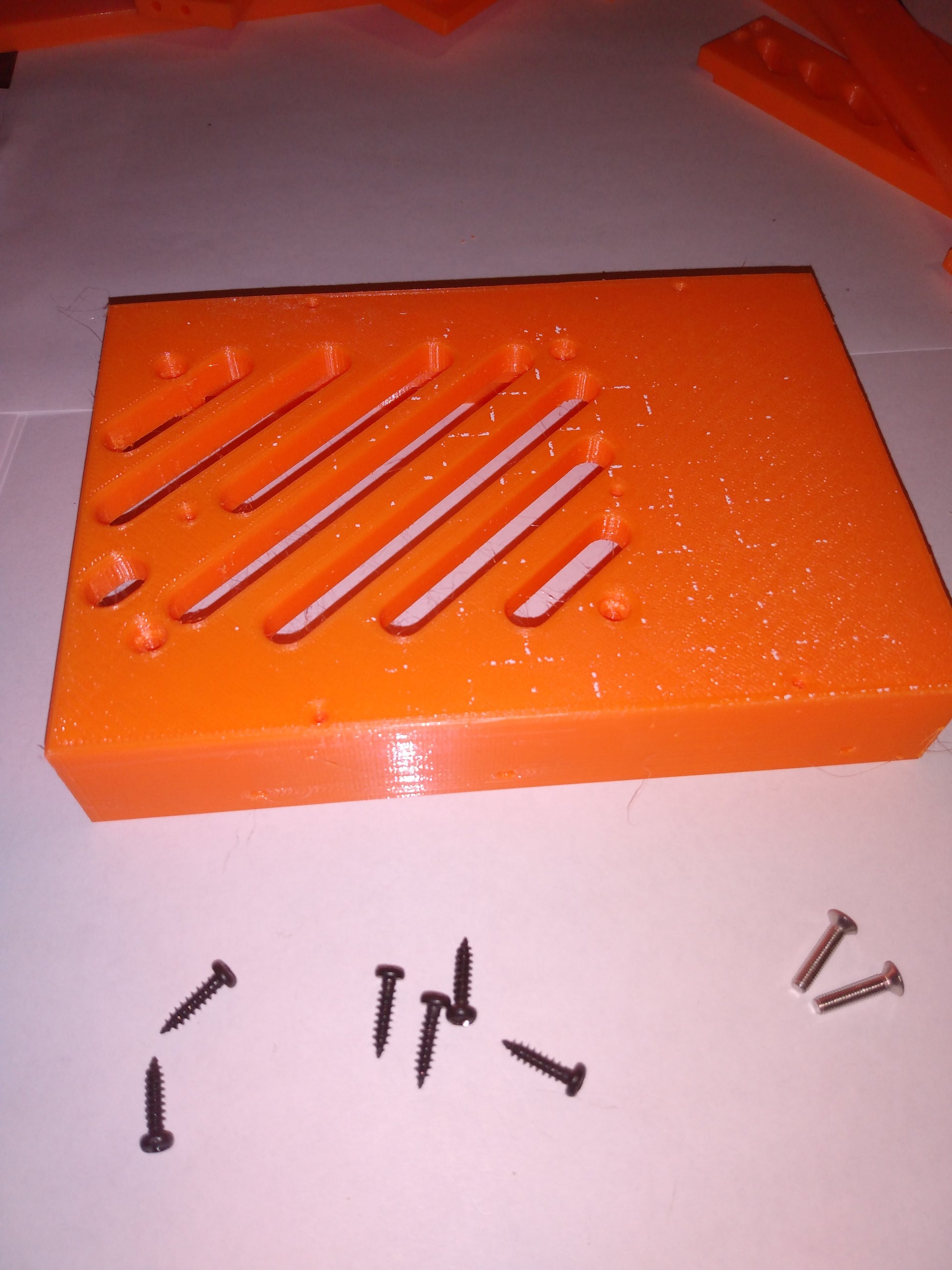

Suggested Hardware 4 x M3 6mm self tapping screws - mounts adapter to case 4 x M3 6mm machine screws - mounts 2.5” hard drive to adapter 2 x M3 x 4mm self tapping screws - mounts M.2 SATA III adapter card
Note: NVMe M.2 SSDs cannot be adapted to use SATA III cables. The "e" in the NVMe protocol stands for PCI Express, and it can only be used directly as a PCI Express device. The NVMe must be mounted directly on the motherboard, or it can be adapted to be used with the USB 3.1 protocol only.

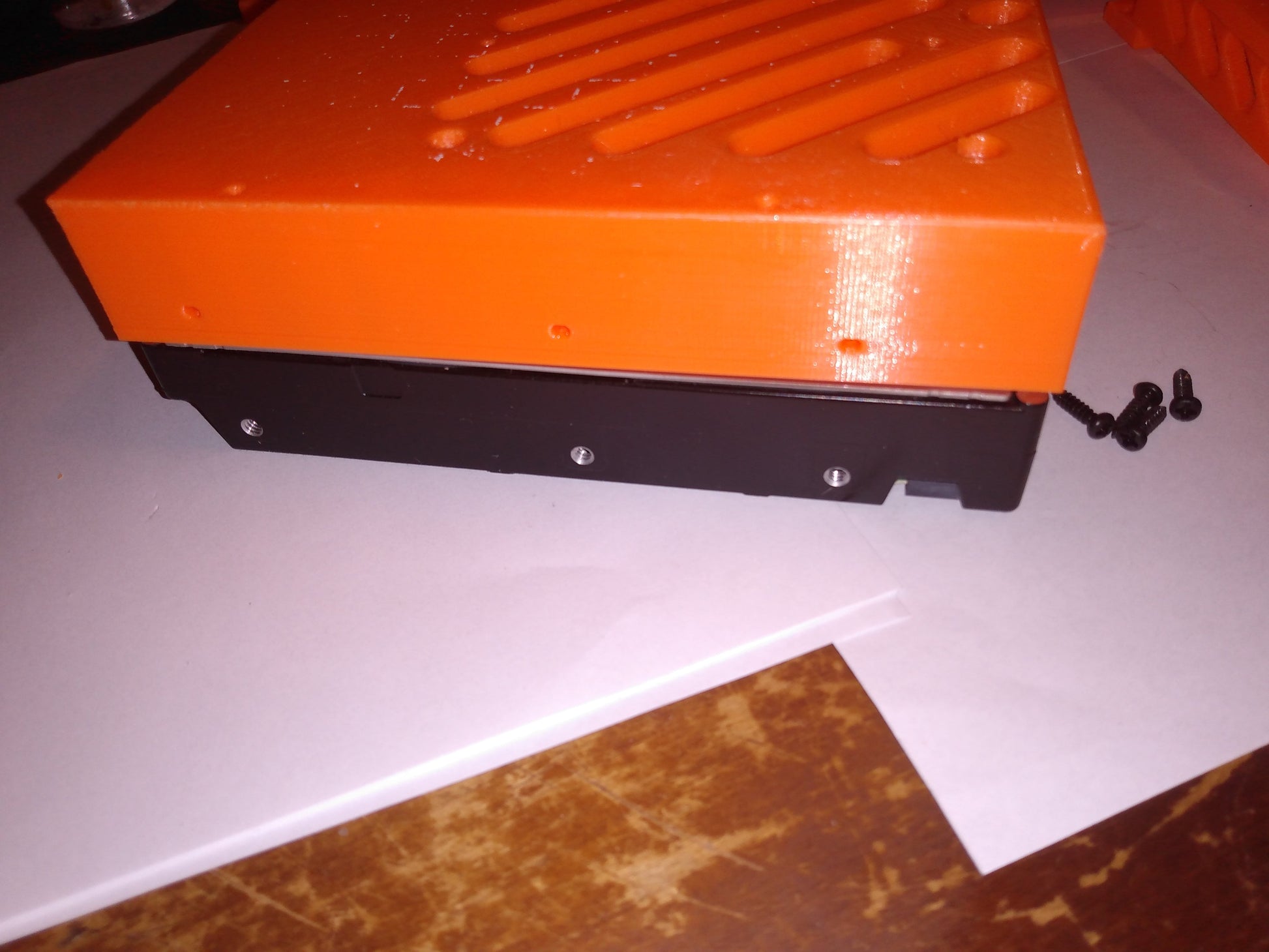

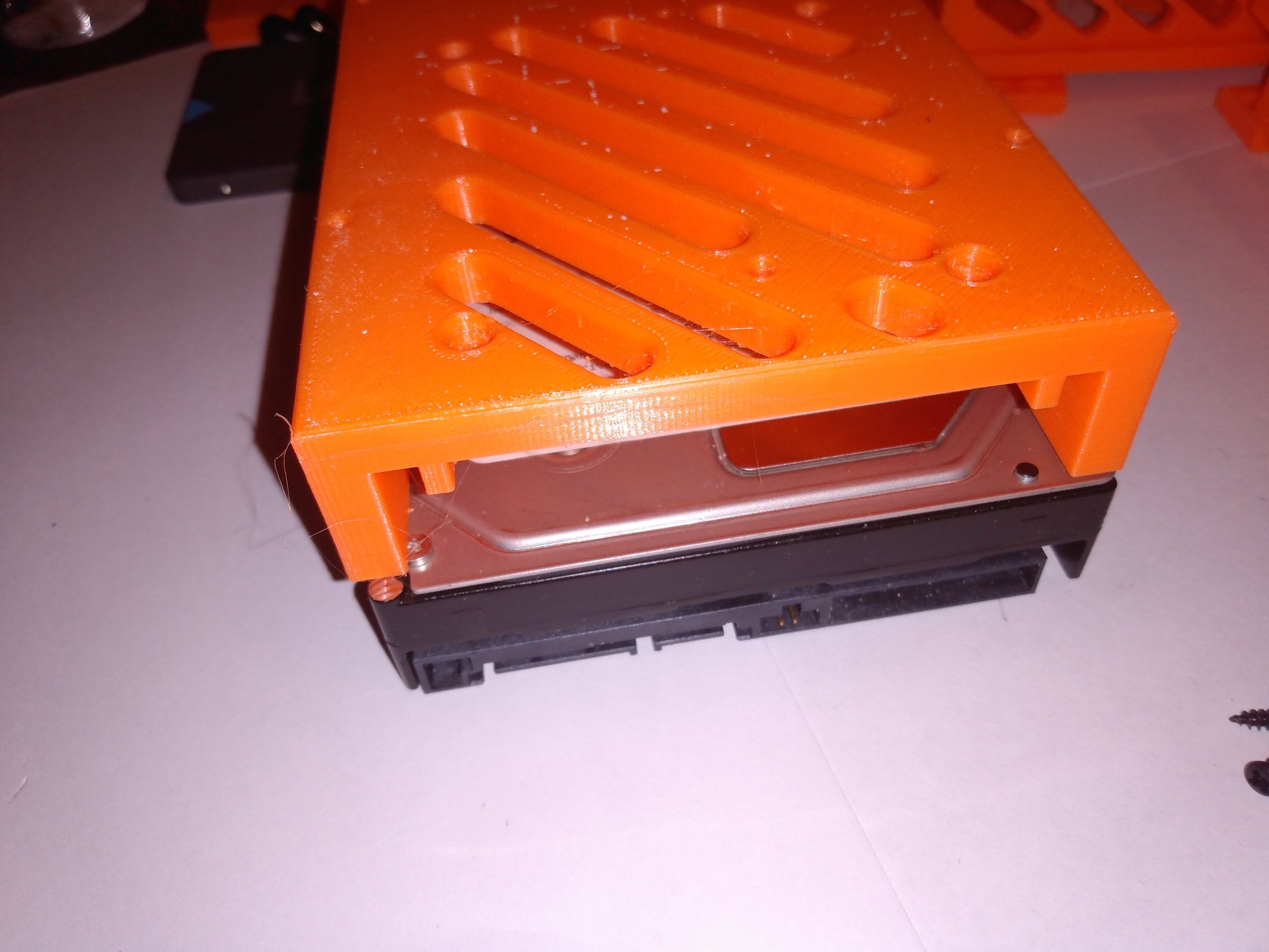

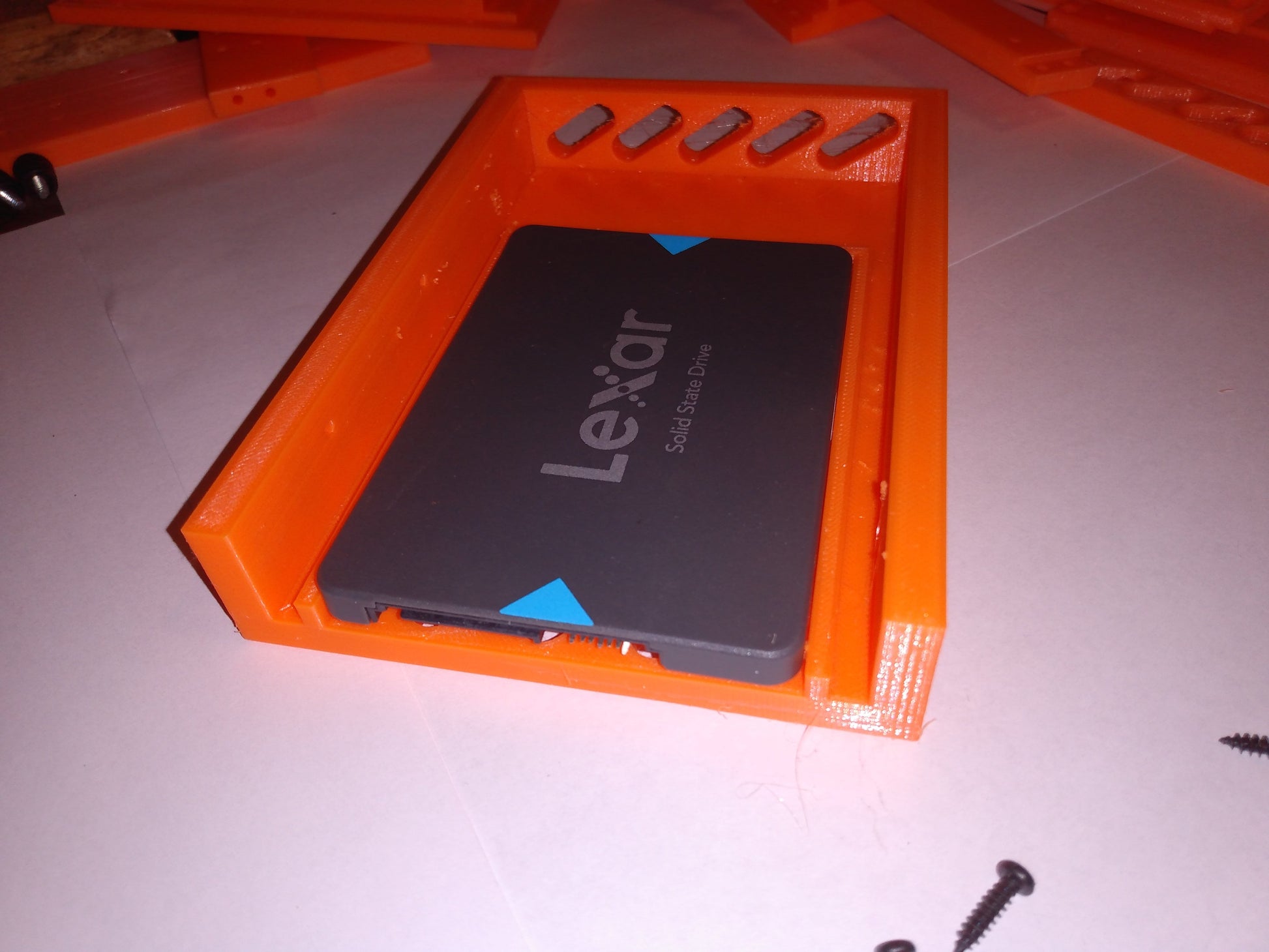

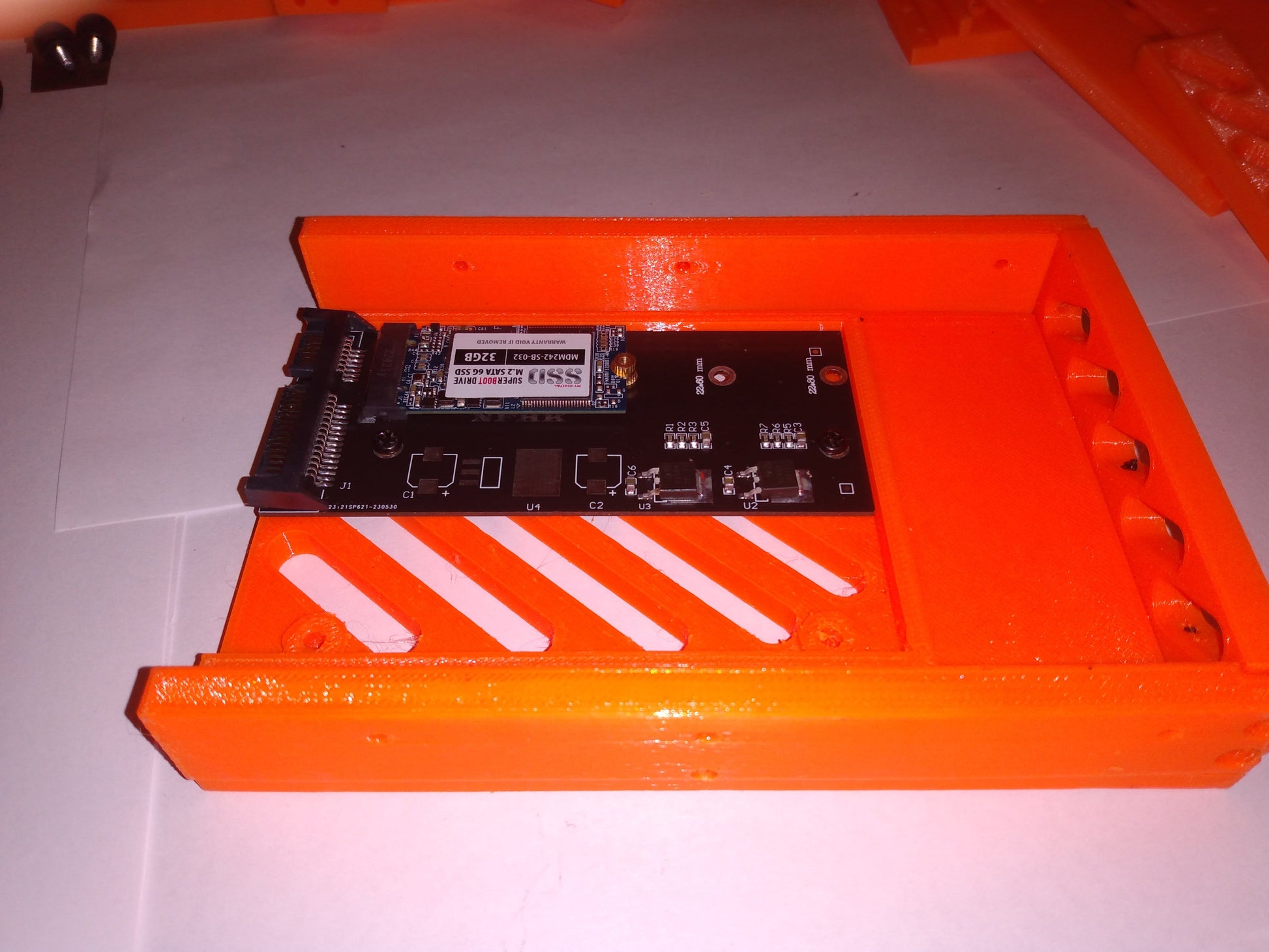

Fits pictured hard drives and electronic adapters.
